RFID Reader

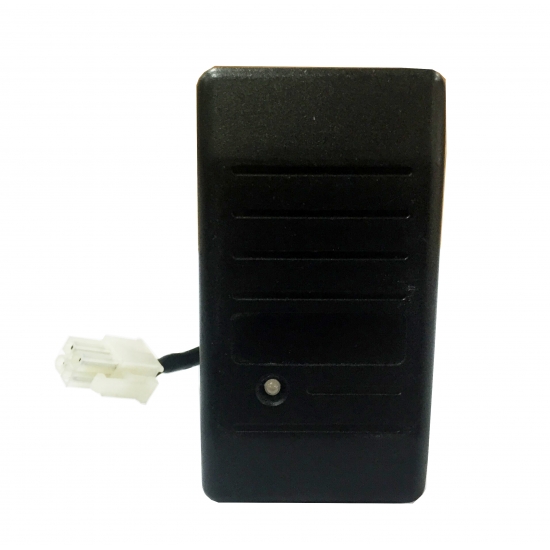

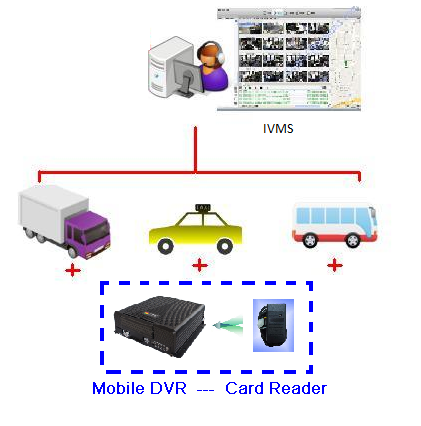

CR1812 is a high frequency and non-contact IC card reader which is suitable for GPS mobile DVR device. It’s very popular among GPS mobile DVR end-users because of its small size, easy installation and multi functions which is widely used for staff attendance management of logistics vehicles and other vehicles management solutions.
Complete Product Details
CR1812 is a high frequency and non-contact IC card reader which is suitable for GPS mobile DVR device. It’s very popular among GPS mobile DVR end-users because of its small size, easy installation and multi functions which is widely used for staff attendance management of logistics vehicles and other vehicles management solutions.
Type: PDF • Size: 273 KB • Downloads: 20
- IP65 epoxy resin sealant, water-proof and rain-proof.

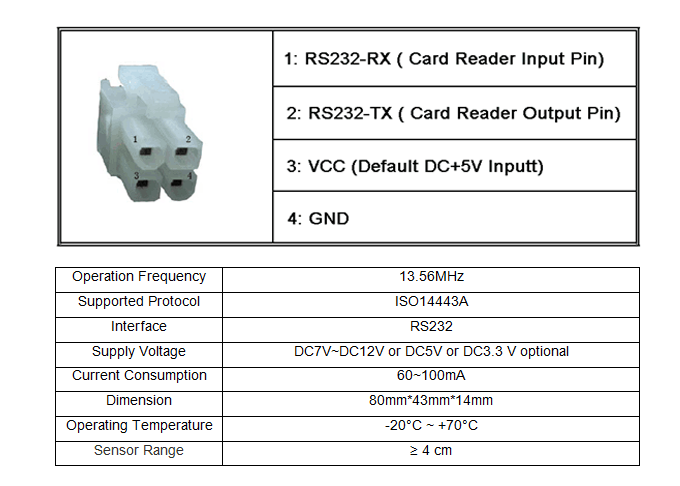

- Communication cable adopted 1.5 m 4 Pin shield cable with 5557-4 connector.
- Support all types of cards (S50, S70, ULtralight, Desfire, Mifare, Plus, Mifare Pro,ShenZhen transcard and YangChengTong) under the protocol of ISO14443A, allowed to set-up to read only one card number or all types of card numbers at the same time. It also supports the latest S50 and S70 for 7 bytes card number.
- Optional settings to read card serial number or card data area.
- Password function, the card reader will only read the card when the password matches.
- Functions set-up of card reader is operated by software or “setting card”. The “settingcard” can be set with password.
