JS1A V2 - The Ultra-Compact 4-Channel Solution
Engineered for mission-critical fleet monitoring, the JS1A V2 combines high-definition 4-channel recording with AI-ready architecture in a lightweight 500g chassis.
Technical Performance
Advanced telematics specs built for the modern fleet.
Multi-Channel Input
Support for 4 channels of 1080P AHD plus an additional IP camera input. Comprehensive coverage for every angle of your vehicle.
1TB Storage
Single SD card slot supporting up to 1TB capacity for extended recording cycles without data loss.
Connectivity
Built-in GPS with modular options for 4G or high-speed WiFi data transmission for real-time tracking.
Product Description
JS1A (V2) is a 4ch SD card high-definition Mobile Digital Video Recorder. With newly added AI algorithms, it supports DSM and ADAS to effectively reduce accidents on the road. Engineered with a new design concept, the JS1A (V2) will provide you with the most cost-efficient size and new case design.
It can be widely used in mobile car environments with strong vibrations, and is highly applicable to Taxi, Bus, Logistics Vehicles, Coach Bus, School Bus, Police Car, Cash Carrier, Fuel Tanker, and other commercial fleet applications.

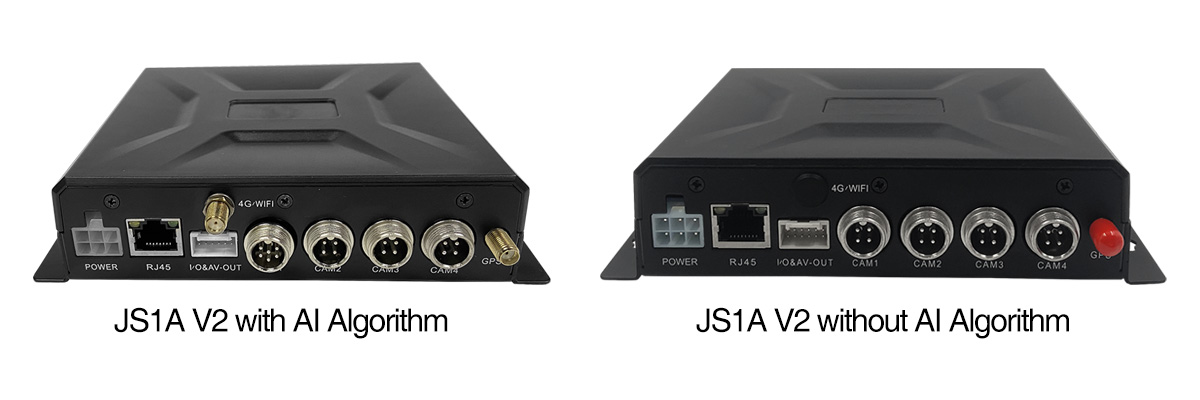

Rear Panel Interfaces
JS1A (V2) Rear Panel showing interface layouts with and without AI Algorithm

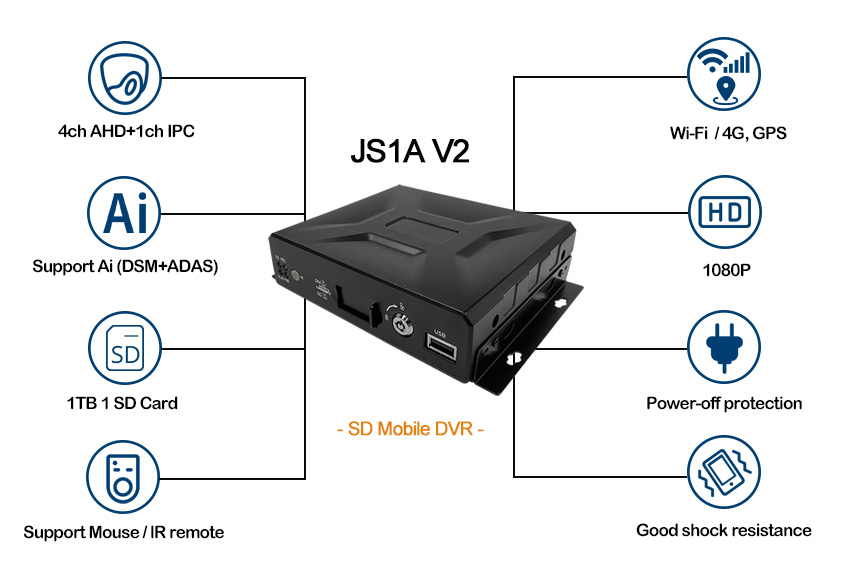

Product Features Illustration
Core Product Features
- check_circleSupport H.265/H.264 image compression coding
- check_circleAI Algorithm optional: DSM (JA-MC921) and ADAS (JA-MC920)
- check_circleSupport IR remote, easy configuration
- check_circleSupport 4 channels 1080P AHD + 1 channel IPC (1080P) Video input
- check_circleAir video interface for high reliability and anti-seismic property
- check_circleBuilt-in GPS, with optional 4G or Wi-Fi
- check_circlePower-off protection technology to prevent file damage
- check_circleStorage: 1 SD Card Slot, Up to 1TB (Class 10+)
- check_circle1 USB 2.0 Port for video download and firmware upgrade
- check_circleSupport 1 CVBS video output (Rear Panel 12 pin I/O & AV-OUT)
- check_circleGood scalability with 1 RS232 interface
- check_circleSupport 4 alarm inputs, 1 alarm output
- check_circleSupport 3-axis G-Sensor (6-axis optional)
- check_circleGood shock resistance, 360° installation supported
- check_circle8V-36V wide voltage DC supply, 12V POE support
- check_circleOperating temperature: -25℃ to +75℃

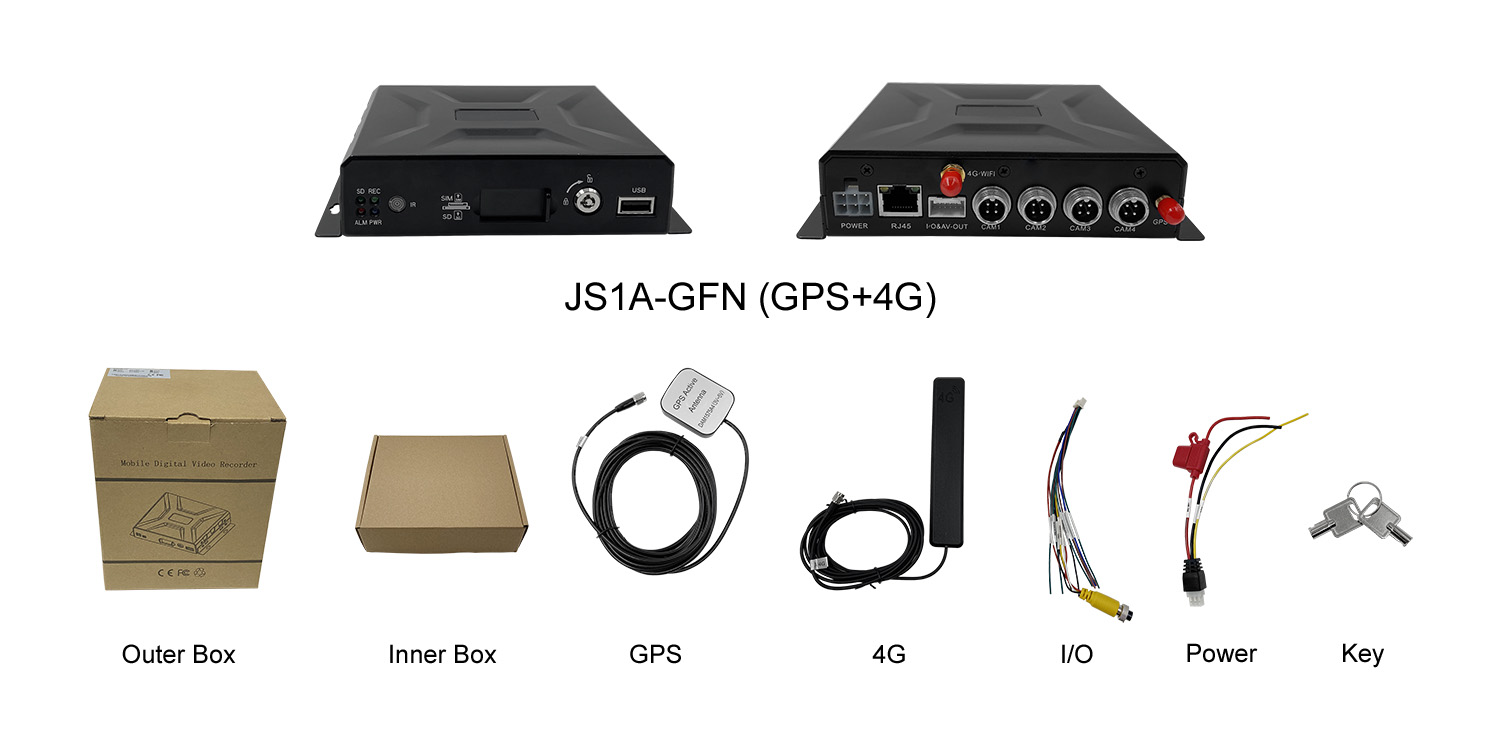

JS1A (V2) Packaging Box Accessories
Included standard accessories packaging diagram
Detailed Specifications
Technical performance parameters for JS1A V2
| Parameter | Description |
|---|---|
| Main Processor | Industrial Grade High-Performance SoC |
| Operating System | Embedded Linux OS |
| Video Standard | H.265 / H.264 compression coding |
| Audio Interface | 4ch input | 1ch output (Air interface) |
| Storage | 1x SD Slot (Up to 1TB, Class 10+) |
| Sensors | Built-in GPS, 3-axis G-Sensor (6-axis optional) |
| Working Voltage | DC 8V ~ 36V Wide Voltage |
| Temperature | -25°C to +75°C Operational Range |
JS1A (V2) Spec-Sheet
Type: Excel • Size: 199 KB • Downloads: 53
Available Order Models
| Model | Module Optional |
|---|---|
| JS1A-GFN (V2) | GPS+4G |
| JS1A-GNN (V2) | GPS |
| JS1A-GNW (V2) | GPS+WiFi |
Related Solutions
- arrow_right_alt Cargo Van Vehicle Monitoring System Solution
- arrow_right_alt Public Transit Bus Monitoring System Solution
Industry Applications
The JS1A V2 is the versatile backbone for specialized vehicle monitoring across diverse global markets.
Taxi & Ride-Hailing
Compact design ideal for limited cabin space, providing driver security and passenger safety monitoring.
Light Delivery
Track fleet routes and cargo integrity with high-reliability video evidence and GPS location mapping.
Police & Law Enforcement
Rugged anti-seismic interface ensures recording continuity during high-speed response and rugged pursuits.
Ideal for Monitoring a Wide Range of Vehicles
Designed for various vehicles management, and widely used in buses, coaches, car, construction machinery, taxis, lorries, fire trucks, ambulances, passenger vehicles, etc.
