Next-Gen Telematics

JT1 (V5) - Smart Touch Screen MDVR

The Ultimate Control Hub for Taxi & Ride-Hailing Fleets. Engineered for high-stakes urban environments with professional-grade monitoring.

android Android 10 OS desktop_windows 1024 x 600 signal_cellular_alt 4G/GPS/BT
Request Quote arrow_forward Technical Data
JT1 V5 Touchscreen MDVR Device render

Precision Engineering for Fleet Safety

widgets

Android 10 Ecosystem

Integrated support for professional navigation, real-time payment records, and dynamic order lists directly at the driver's fingertips.

NAVIGATION PAYMENTS
health_and_safety

Safety First

Advanced, AI-powered ADAS/DSM support and facial recognition login for maximum driver accountability.

Active ADAS & DSM
sensors

Advanced Connectivity

Global 4G LTE, high-precision GPS positioning, WiFi hotspotting, and Bluetooth OBD interface.

Full IoT Stack
storage

Industrial Storage

Dual-slot redundancy with 1x SSD and 1x SD Card support, ensuring mission-critical data protection in extreme conditions.

Dual Backup 24/7 RELIABILITY

Product Description

This powerful touch screen MDVR JT1 is perfect for taxi surveillance and fleet management. Running on an Android system, it includes a wide array of functions like real-time video/recording, GPS tracking, network communication, on-board navigation, message notifications from the center, telephone, order list management, and payment records.

It is fully capable of integrating with other fleet accessories such as taximeters, LED advertisement panels, POS machines, driver panic buttons, service evaluators, Status LED displays, and speakers for extended functionalities.

Product Overview

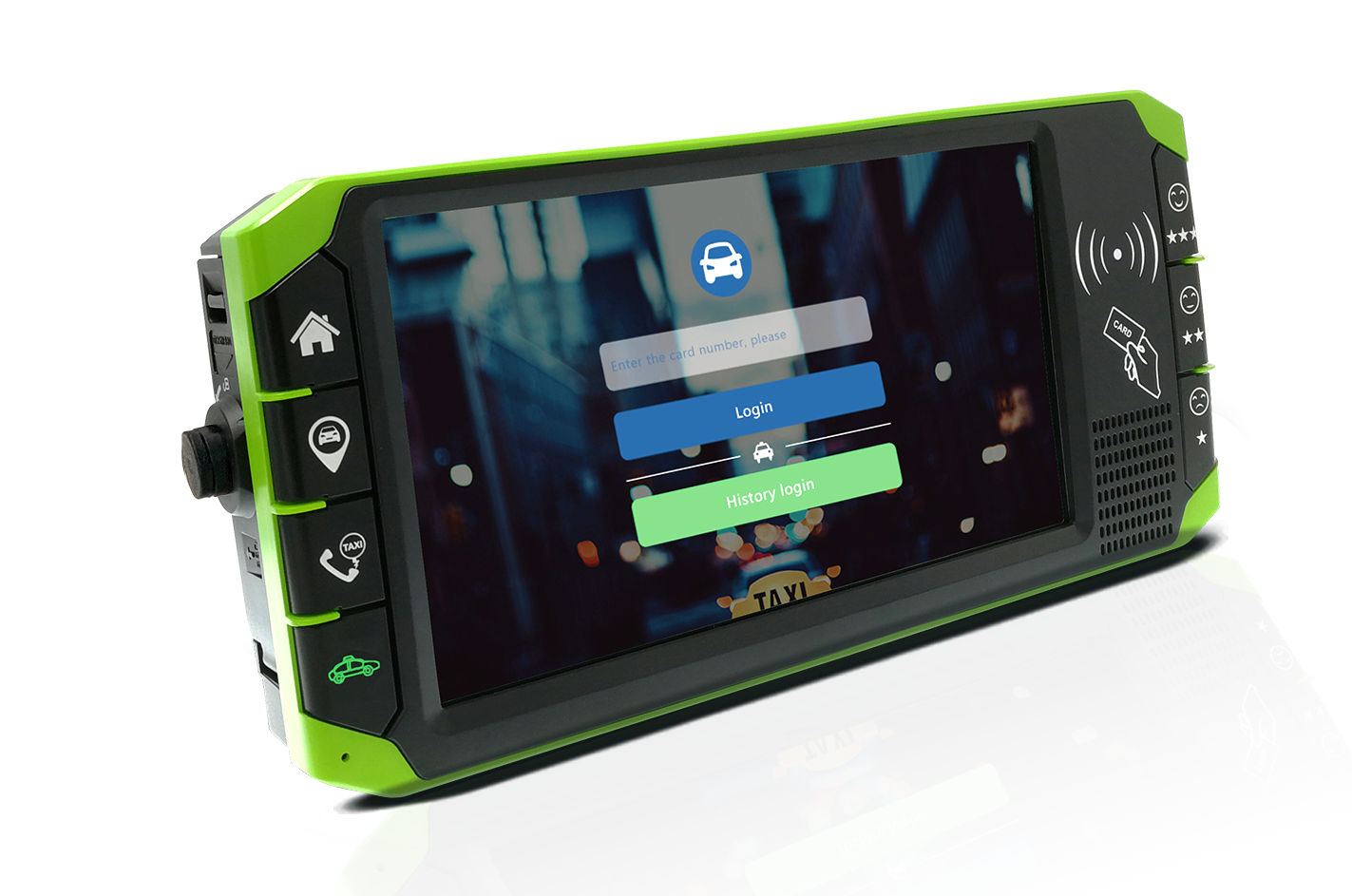

Touch Screen Mobile DVR JT1 Product Overview

Comparison: JT1 (V5) vs. JT1 (V3)

Compare the core parameters between our newer V5 and legacy V3 touchscreen mobile DVR models.

Feature JT1 (V5) JT1 (V3)
Resolution 1024 x 600 800 x 480
Operating System Android 10 Android 7.1
Storage 1*SSD + 1*SD Card 1*SD Card
Video Input (Regular) 2 channels AHD (1ch 1080p + 1ch 720P) 2 channels 720P AHD
Video Input (Custom) A. Support 4 channels AHD (1ch 1080p + 3ch 720P)
B. Support 1 ADAS cam + 1 DSM cam + 2 channels 720P AHD cams 		A. Support 2 channels 720P AHD + 2 channels 720P IP cams
B. Support 1 ADAS cam + 1 DSM cam + 1 channel 720P AHD cam
C. Support 1 ADAS cam + 1 DSM cam + 2 channels 720P AHD cams

Core Product Features

  • check_circleSupport 3G/4G network connection
  • check_circleVideo Input (Regular): Support 2 channels AHD (1ch 1080p + 1ch 720P)
  • check_circleVideo Input (Custom): 4 channels AHD, or ADAS + DSM + 2 channels 720P AHD
  • check_circleStorage Redundancy: 1 * SSD + 1 * SD Card slots
  • check_circleSupport Wi-Fi hotspotting
  • check_circleSupport Face Recognition & driver facial login system
  • check_circleSupport ADAS (JA-MC920) / DSM (JA-MC921) optional modules
  • check_circleInternal GPS, 3G/4G, Bluetooth module (supports Bluetooth headset / OBD)
  • check_circleSupport RFID Card Reader for driver verification
  • check_circleWith service evaluation buttons
  • check_circleSupport fare meters, LED panels, POS machines, panic buttons
  • check_circleMultiple alarm reports & uninterrupted Audio recording
  • check_circleOn-board power-off delay for data protection
  • check_circle9V~36V wide voltage power supply

Extended Functions

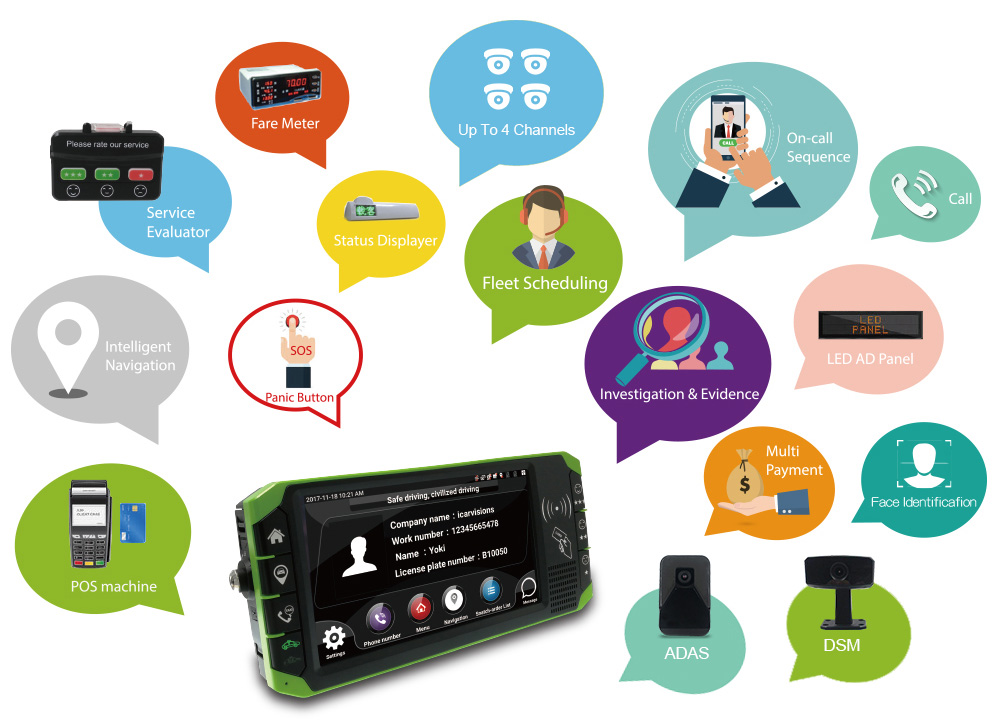

Touchscreen MDVR Extended Functions Diagram

User-Friendly GUI

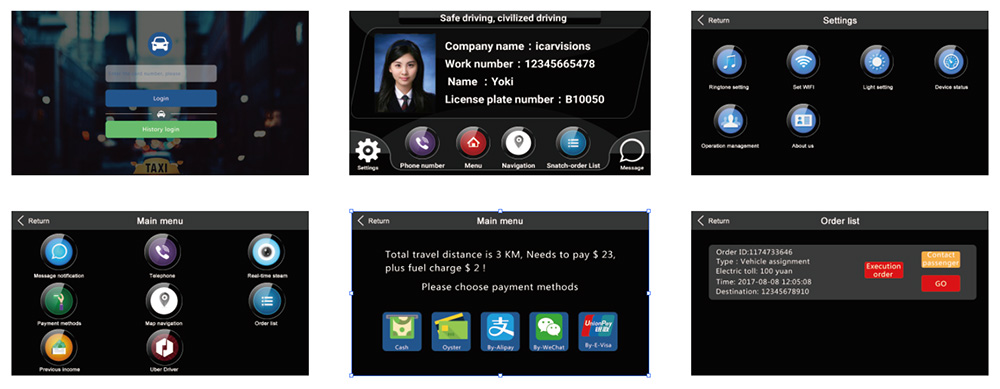

Touchscreen MDVR UI Interface Screen

Technical Specifications

The hardware DNA of the JT1 (V5) Smart Hub

download Download Full Datasheet (PDF)
Feature Specification
Video Input 4 channels AHD (1ch 1080p + 3ch 720p)
Operating System Android 10.0 Professional Edition
Display Interface 7-inch High-Res IPS (1024 x 600)
Power Supply 9V~36V Intelligent Wide Voltage Input
Audio Processing Uninterrupted high-fidelity recording support
Communication 4G LTE FDD/TDD, GPS/GLONASS, Bluetooth 5.0

Available Order Models

Model Module Optional
JT1 GPS+3G+4G+Bluetooth

Related Solutions & Reading

Applicable Vehicle Types

Designed for diverse passenger transport, taxi fleet management, and rideshare safety operations.

Taxi & Ride-Hailing Deployment

Our touch screen mobile DVRs are designed for Taxis, Uber/Lyft rideshare vehicles, and municipal taxi fleets, ensuring seamless navigation and driver-passenger protection.

Taxi & Ride-Hailing deployment of JT1 Touchscreen MDVR
